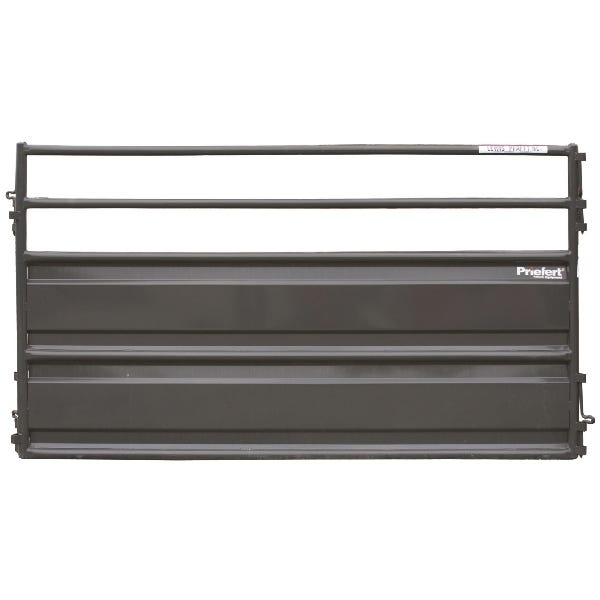

Priefert Sheeted Sweep Panel, Straight

Out of stock

SKU:
42765
Model Number:
SSP
Brand/Manufacturer:
Priefert
$850.00
/ EA

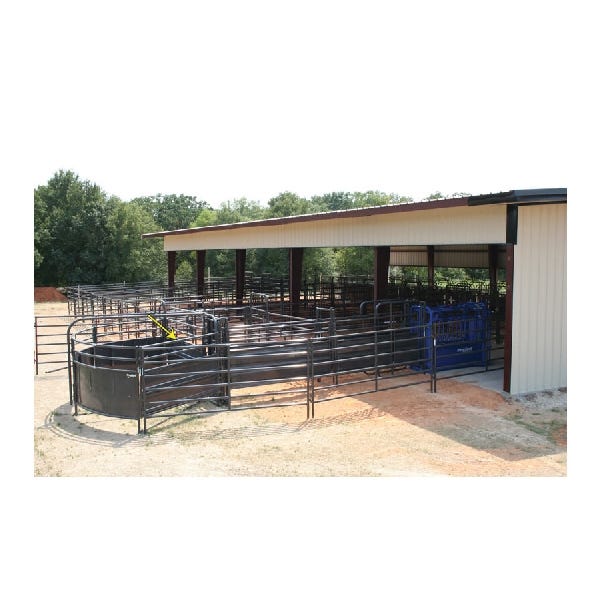

Specifically designed for use with Solid Sweeps, this sheeted straight panel is used as a blocking panel to direct cattle into the alley from the sweep tub. Sturdy Rough Stock Pin connectors allow for quick and secure attachment to other components. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.
Length
: 103 in
Color
: Gray
Product Category
: Cattle Handling Equip
Material
: Steel
Frame Tubing Diameter
: 2 in
Finish
: Powder-Coated
Material Gauge
: 14 ga
Weight
: 184 lb
  • When properly installed, the sheeted portion of this panel begins 10” above ground and continues to 51” above the ground
  • Bottom of the panel features 14 gauge sheeted steel
  • The frame is constructed from 2” OD 14 gauge tubing
  • Top of the panel features two rails constructed from 2” OD 14 gauge tubing with 8” spacing between the rails
  • Sturdy Rough Stock pin connectors allow for quick and secure connections to additional components.
