Priefert Sheeted Curve Livestock Panel, 8 ft

Out of stock

SKU:
42762
Model Number:
SCP
Brand/Manufacturer:
Priefert
$800.00
/ EA

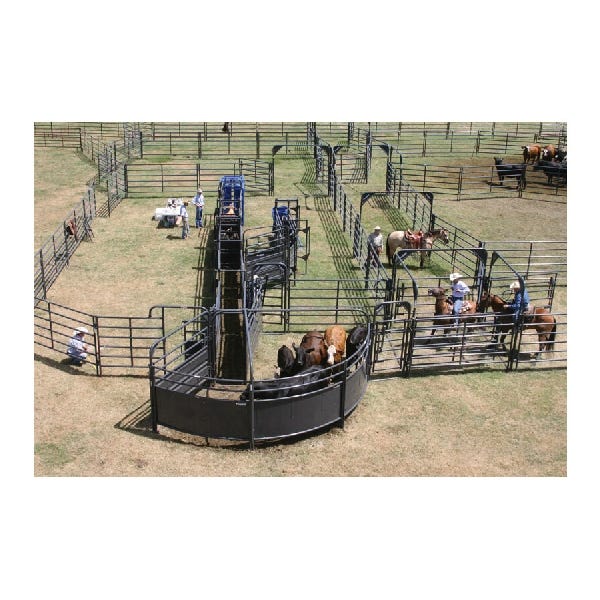

Specially designed for use in constructing the sweep tub in Priefert’s Solid Sweeps, the SCP includes three vertical blocking points that allow the sweep gate to continually latch as it “sweeps” forward. These stops help prevent cattle from pushing the sweep gate back when being crowded. This panel also features sturdy Rough Stock pin connectors for quick and secure attachments. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.
Length
: 94 in
Color
: Gray
Product Category
: Cattle Handling Equip
Height
: 72 in
Material
: Steel
Frame Tubing Diameter
: 2 in
Finish
: Powder-Coated
Material Gauge
: 14 ga
Weight
: 187 lb

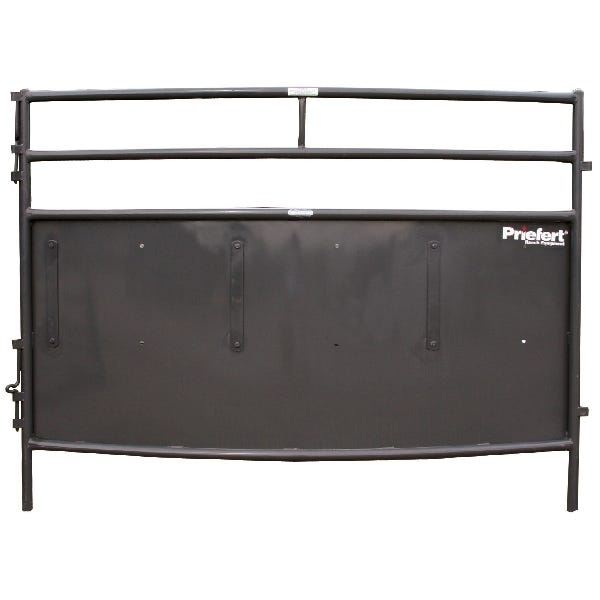

  • Curved panel includes 3 vertical blocking points approximately 31”-32” apart that allow the sweep gate to continually latch as it “sweeps” forward
  • Solid bottom of the panel is constructed from 14 gauge sheeted steel
  • The frame is constructed from 2” OD 14 gauge tubing
  • Top of the panel features two rails constructed from 2” OD 14 gauge tubing with 8” spacing between the rails
  • When properly installed, the sheeting begins 10” above ground and continues to 51” above the ground
